This is another example for creating a vis file (old visualiser personality) from a d4 file (Titan personality). The fundamentals are described in Creating vis files from d4 personalities. Here, only the little details are explained.

• the d4 personality already exists and has Pearl references - we can generate r20 and vis files right away
• we need to adjust the dmx values for the Strobe definition, and add some Open ranges
• Dimmer Mode (likely th dim speed) is not supported by the visualiser

Apart from that it works reasonably well in the visualiser.

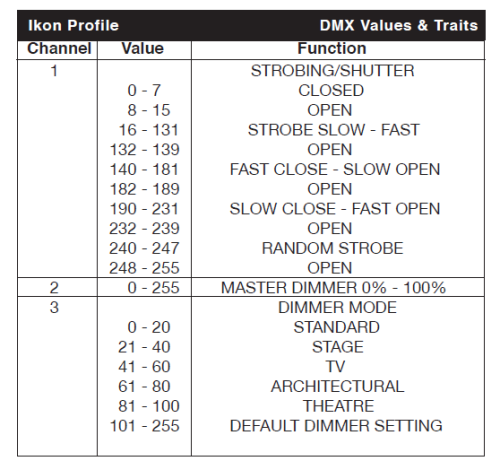

The DMX table:

The adjusted Strobe definition:

ChanRef Dimmer
    Vismode Strobe
    UseBits 1 2 3 4 5 6 7 8
    DmxOffset 1
    Mapping 0 7 0 0
    Mapping 8 15 1 1
    Mapping 16 131 30 300
    Mapping 132 139 1 1
    Mapping 140 181 30 300
    Mapping 182 189 1 1
    Mapping 190 231 30 300
    Mapping 232 239 1 1
    Mapping 240 247 30 300
    Mapping 248 255 1 1
End

The edited and tested files are in this zip: adj_ikon_profile.zip. Refer to Creating vis files from d4 personalities for more details
